Power and controls
H-100R power supply with remote · up to 180 sq ft
Runs up to 180 sq ft of Smart Film®.
- Made in the USA and shipped direct from the manufacturer
- Genuine Smart Tint® parts, matched to your film
- Secure checkout by card or PayPal, with live UPS rates
- Questions? Call (866) 249-3077
Details

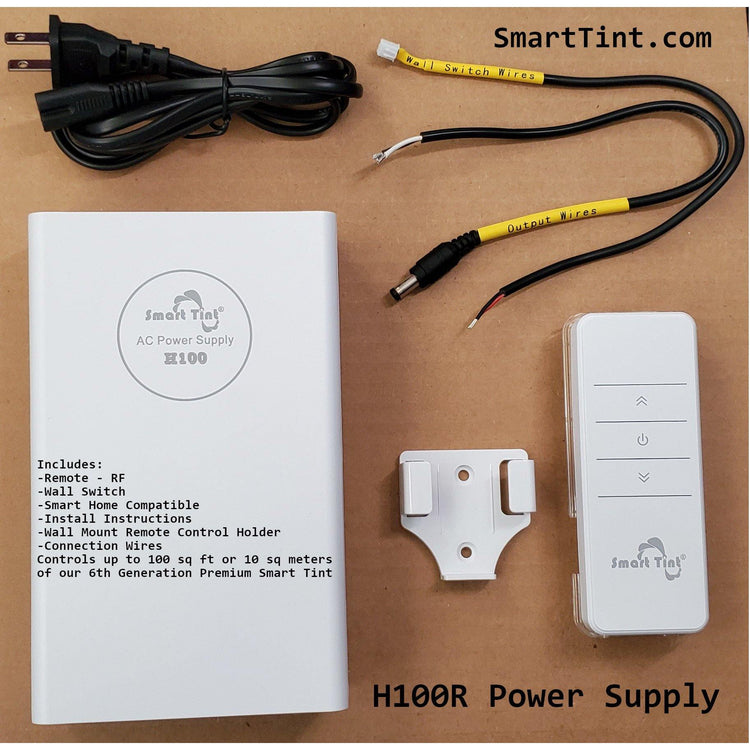

Smart Tint® Power Supply H-100R with Remote Control/Wall Switch On/Off Only Includes remote control.
The H-100R power control unit is extremely efficient and designed for long-term permanent installation.
The H-100R is made of fine copper material and has a very stable output. This 100watt unit controls up to 180 sq. feet of our Smart Tint 6th Generation Smart Film® material and is constructed of a high-performance flame-retardant epoxy resin casting.
The operating temperature is very low and suitable for various environments.
The H-100R power control unit has a circuit board that utilizes a self-recovery system designed to cut the power by itself when overloaded.
This system will auto-restart when overloaded or till the short is corrected. Includes RF remote and dry contact relay input compatible with 3rd party control systems such as Crestron, Lutron, Savant, Dmx etc.
Features
Rated Power: 100W Rated Ampere: 2A Input Voltage: AC 110-120 vac Output voltage: AC 48-60vac VAC Size: 46mm H (1.8") x 110mm W(4.3") x 179mm L(7.0")
